Houdini - IPOPs Geometry AOVs for Karma CPU & XPU! [Karma Materials]

I'm excited to share with you a toolset that I've recently developed to help streamline and enhance your Houdini workflow. As someone who has spent years in the industry, working on projects ranging from blockbuster films to intricate visual effects, I know how important it is to have the right tools at your fingertips. That's why I created the IPOPs Toolset – a collection of over 70 HDAs (Houdini Digital Assets) designed to simplify complex tasks and unleash your creativity.

Whether you're a seasoned pro or just starting, the IPOPs Toolset has something for everyone. These tools allow you to generate AOVs or Image Planes, and achieve stunning results with ease. In this guide, I'll take you through the process of using the IPOPs Toolset step by step, from installation to advanced techniques for Geometry AOVs using Karma Materials.

Let's dive right in and explore the endless possibilities that IPOPs can bring to your projects. I'm thrilled to have you on this journey and can't wait to see what you'll create!

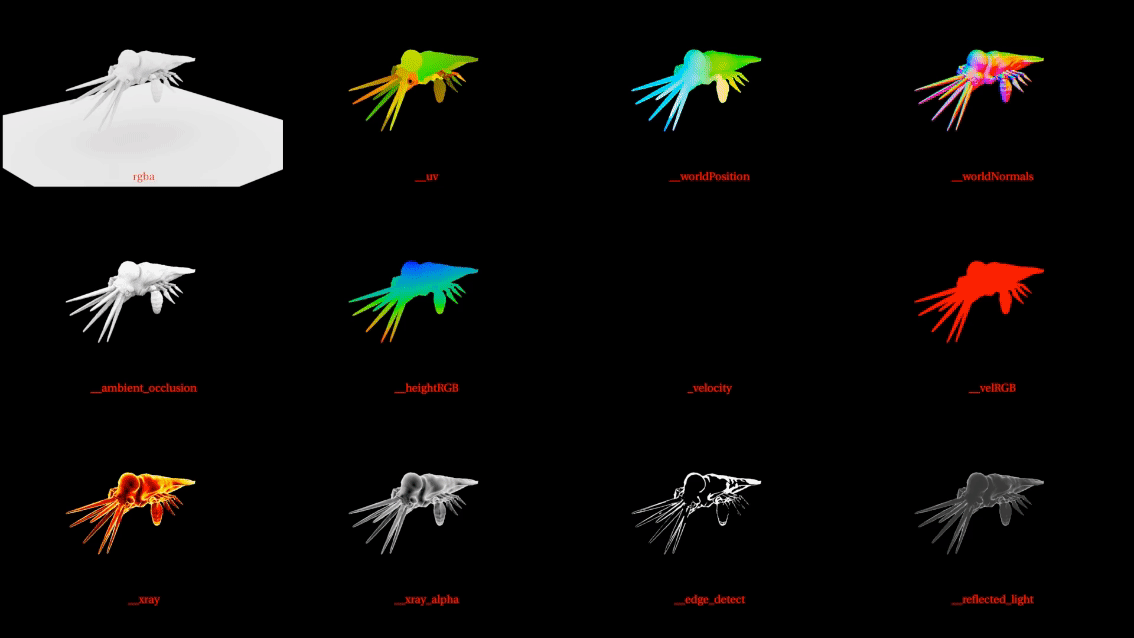

IPOPs in Production

While the video provides a brief overview of the Toolset features and its functionality in production, I will delve into a comprehensive, step-by-step guide on how it works.

Simple Scene Setup

I have a simple scene setup of a simple squab softbody falling on the ground, we will generate some interesting AOVs in a few easy steps and take a look at how to adjust them.

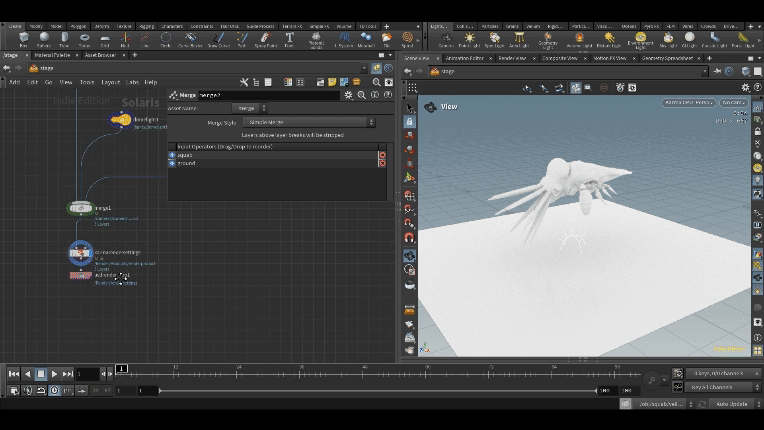

Basic stage configuration with the Squab assigned a default karma material.

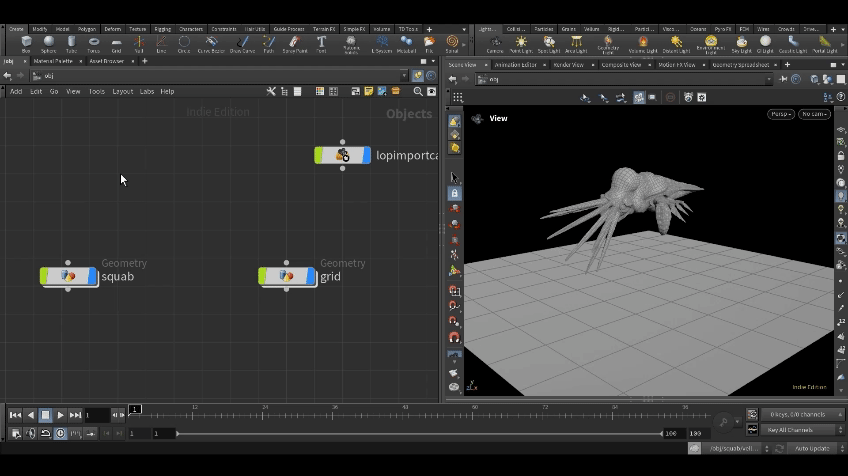

The LOP Network Camera has been brought into the Object Level.

Step 1: Scene Controller

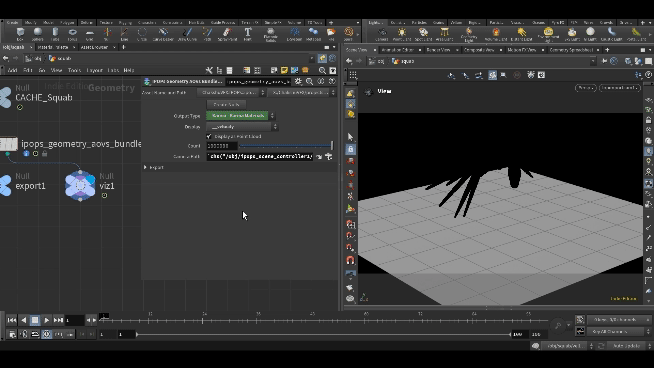

To begin, we will create a "Scene Controller" Object Node, which will inform the IPOPs toolset about the material type in use and assist the Geometry AOV Bundle in selecting the appropriate viewer camera through the camera input. All IPOPs SOPs are connected to the Scene Controller, enabling you to make setting adjustments from a centralized location.

Step 2: IPOPs Geometry AOVs Bundle Maker SOP

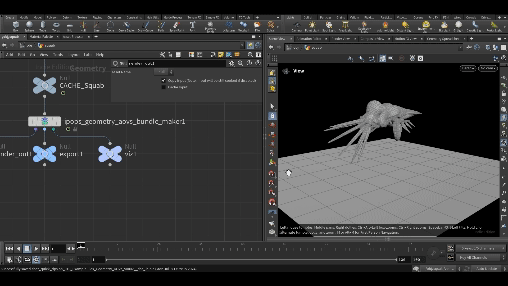

Next dive inside your geometry object and put down the IPOPS Geometry AOV Bundle Maker. Connect that to the node you want to render and in the parameters press "Create Nulls", this will create three nulls. The "render_out" null is the final null to be used for rendering, the "export" null bakes all the settings into attributes that can be exported for other renderers and the "viz" null is a visualizer for a quick preview of your settings.

Step 3: Import your Geometry in LOPs

You can copy the path to the "render_out" and go to the /stage, in the sopimport you can paste the path. We have now imported our Squab geometry with the IPOPs settings.

Step 4: Adding AOVs to the Shader

Now let us jump to the Karma Material where we can dive inside the "squab" material and create an IPOPs Geometry AOV Bundle. In the parameter press the "Create Output" button, this will automatically hook a Karma AOV node to the output and rename it to "all_aovs". The "all_aovs" is just a passthrough AOV and will render blank, however, it will carry all the important AOVs information for Karma.

Step 5: Enabling AOVs Render Vars for Karma

To finish the setup, we must navigate to the Karma Render LOP and insert an IPOPs Geometry Render Vars node just before it. This node enables users to activate the AOVs they wish to utilize in their renders.

That's all! We are ready to start adjusting the settings!

Before we get to adjusting settings in the Karma Materials, let's see the SOP node IPOPs Geometry AOVs Bundle Maker. This node allows the user to see some basic AOV settings directly in the viewport as well as fiddle around with various looks. Some of the settings can be transferred directly to the shader so that one shader is reusable for various geometries.

Step 6: Adjusting settings on the SOP Context

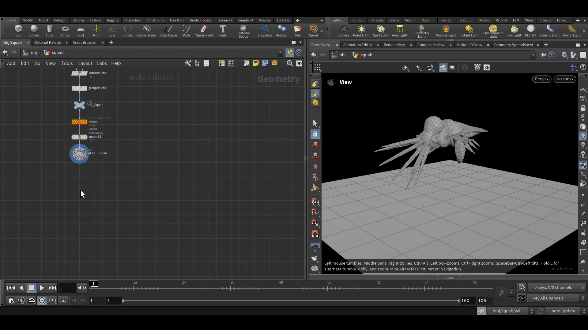

Use The "viz" null, which shows the "__uv", "__position", and "__normal". These AOVs are crucial in the composition, so make sure they are generated correctly here before moving on to rendering. Keep in mind that the visualizer generates a basic scatter and point cloud on the geometry for display purposes, allowing users to preview a high-quality version of the renders without the need to subdivide geometries or create heavy meshes.

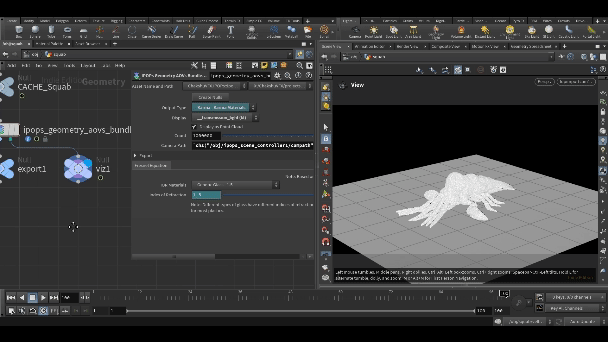

Next, we will explore the different fresnel AOVs, where you have the option to utilize the IOR Presets to establish standard values for different materials. Please be aware that this list may undergo periodic updates.

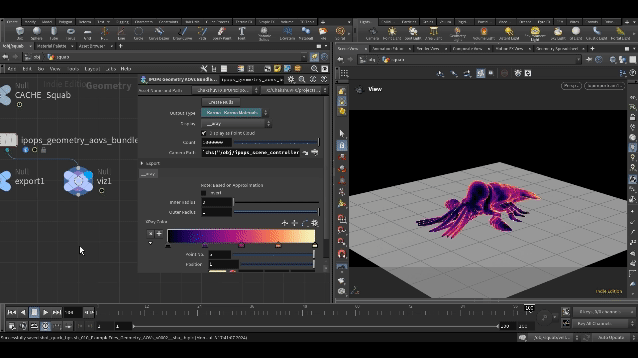

Another useful AOV is the XRay Pass, which is great for simulating rim lights, creating a silhouette for your character, or highlighting edges during compositing.

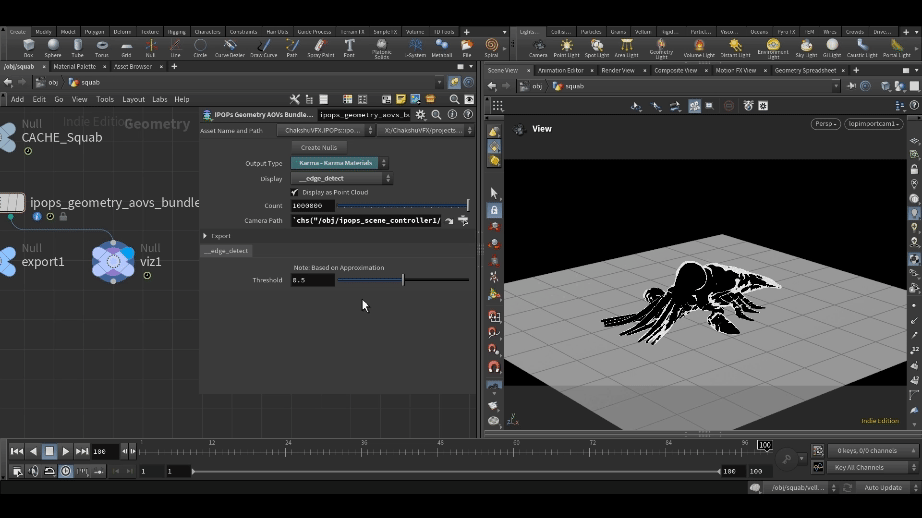

The purpose of the Edge Detect Pass is to replicate Nuke's Edge Detect pass in a 3D environment. This feature assists compositors in swiftly identifying edges without experiencing frequent flickering, and it can also be utilized to highlight edges on a character.

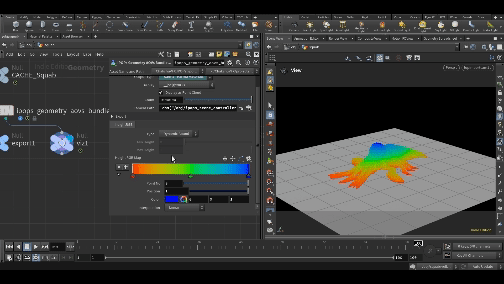

Height RGB enables compositors to manipulate characters as they move along the Y axis. Similar to Z Depth, the height pass can be useful in different scenarios. You have the choice between two options: Static Bound, which features a fixed height ramp for the character to traverse, or Dynamic Bound, which adjusts the ramp based on the character's Bounding box.

The Velocity & Velocity RGB Pass serves as a "speed map" in compositing. It is beneficial for emphasizing specific areas in the composition related to speed, such as creating glows in fast-moving sections of a mesh or enhancing specular highlights for rapidly moving water splashes. This feature is particularly useful in Magical Fx.

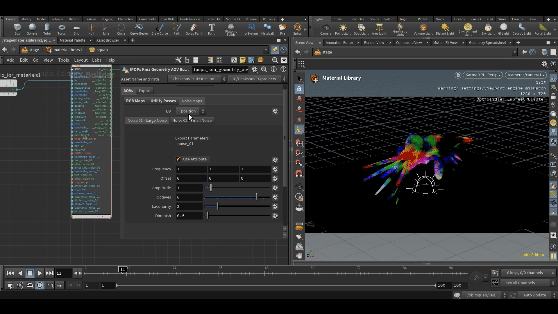

AOVs are employed to aid in compositing by introducing breakups and details in various situations. The use of two noise passes enables the incorporation of both high and low-frequency noise, which can be applied to UVs or Rest Positions to ensure uniformity and avoid noise variations per frame.

Step 7: Adjusting the AOVs within the Shader itself

Now let's move on to adjusting these AOVs in the Shader itself.

Note: Use the "Use Attributes" to import the SOP settings to the shader anytime you want.

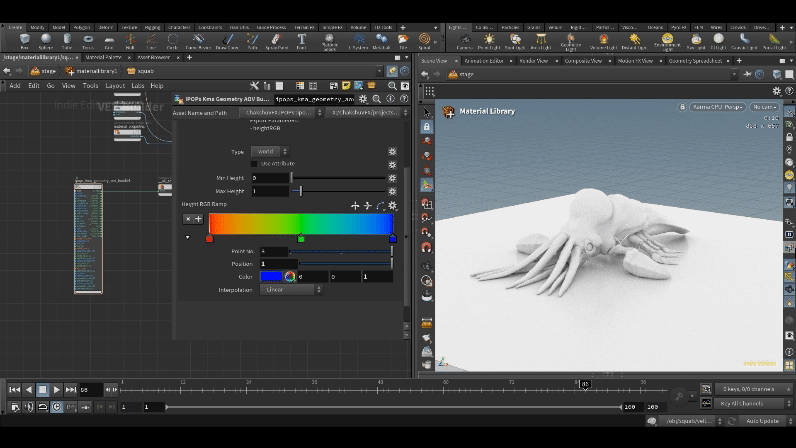

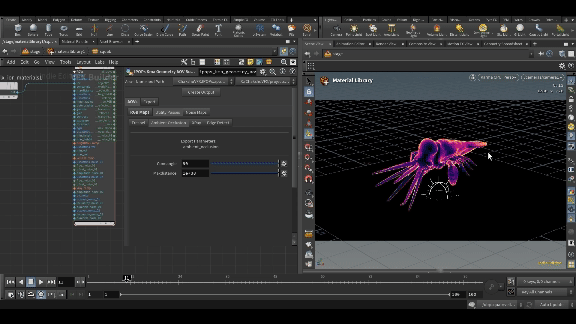

With the Shader IPOPs Geometry AOV Bundle, you have the flexibility to customize each parameter according to your requirements or inherit them from the SOP settings. Enabling "Use Attributes" on any tab will result in inheriting the attributes specific to that AOV. In this scenario, we are opting to inherit the "Dynamic Bounds" from the SOPs, hence the "Use Attributes" option is activated.

Similarly, we can adjust the Velocity RGB. Use the min and max to adjust the speed to ramp over.

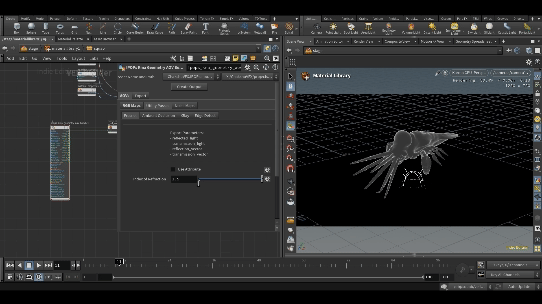

To determine the IOR value suitable for your material, you can either use a specific IOR value or utilize our IPOPs IOR Materials to access a list of presets that can be entered into the "ior" parameter on the HDA. This is convenient as the same IOR value can also be applied to your MaterialX Standard Surface for specular reflections.

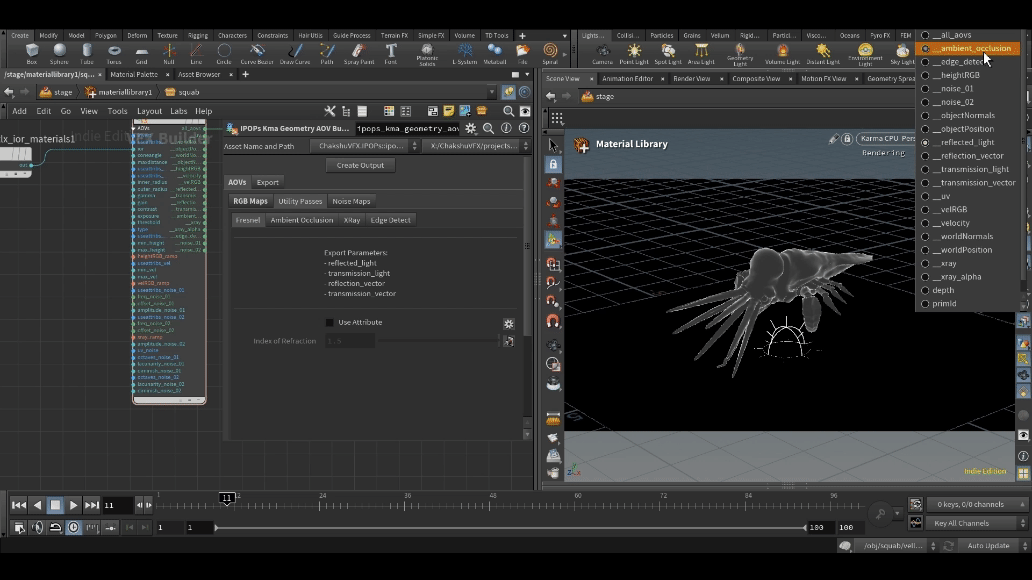

The Ambient Occlusion pass is highly valuable and essential in most situations. Nevertheless, at present, MaterialX only provides support for Ambient Occlusion in Karma CPU.

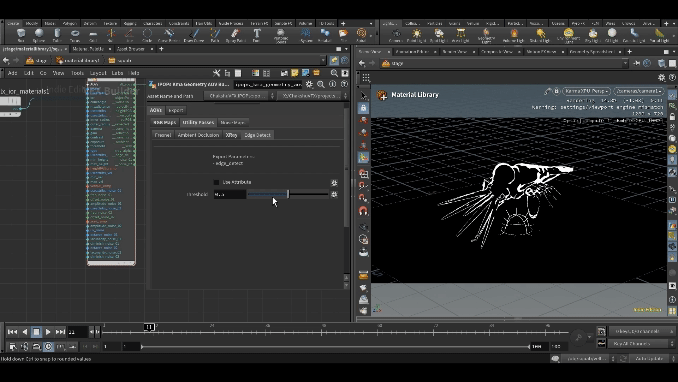

Just like previously, the XRay pass can be modified to produce intriguing edges and ramps. The shader also offers extra color correction options like exposure and contrast, which can enhance the final appearance.

Step 8: Fire your Renders!

We are ready to deliver at last! You can now hit the render button and use all these AOVs in Comp.
